Dowel for timber: use in construction

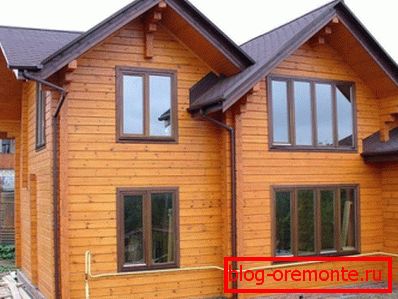

Wood is widely used as a material for external walling. Especially popular in recent years is profiled timber. From it build houses for year-round living and construction of another purpose.

Nagel are used as one of the most reliable ways to connect elements in the construction of walls. They provide sufficient rigidity, leaving room for normal shrinkage.

Proper installation of the nagel will allow you to securely connect the individual elements into a single system with the necessary properties. There is a detailed instruction on the use of such fasteners, the exact implementation of which will provide an opportunity to achieve the desired result. Skilled craftsmen carpenters are well aware of the specifics of using these connecting elements.

The basic concepts and purpose of the Nagel

Wood is a material of natural origin with a heterogeneous internal structure. When drying, there is not only a proportional change in volume, but also a certain deformation. Its degree is determined by the mutual arrangement of fibers, annual rings and other factors. As a result, the material shrinks with the formation of gaps between the elements, cracking and other unpleasant phenomena.

Nagel for timber is a fastener of round or square cross section. It is intended for detachable connection of two adjacent parts. Nagel can be made of hard wood or metal, mainly steel.

The geometrical dimensions of the fasteners used must correspond to the bar. Its small section and length will not provide the necessary rigidity of the structure, and too large can lead to destruction.

Metal nog can be solid or hollow, and its cross-section, as is the case with wood - square or round. Often, to save money, they are made of cash or scrap materials: steel reinforcement, plumbing pipe and rolled metal. Improper use of this type of fastener can cause damage to such a rather expensive material as a profiled beam.

Dug holes of the appropriate diameter in both parts to be drilled are drilled under the dowels. The number and location of attachment points is determined in accordance with the requirements of the governing documents, in particular, SNiP 2.01.07-85. In work the special drill is used for drilling of a bar under pins with necessary adaptations and drills of necessary diameter.

Production and use of dowels in the construction of houses from timber

The name of this connecting element is of German origin and means translated into Russian: nail. Nagels were widely used by carpenters in the construction of log houses log cabins. For their manufacture used wood mainly of solid wood. (See also the article House from a bar for two families: advantages)

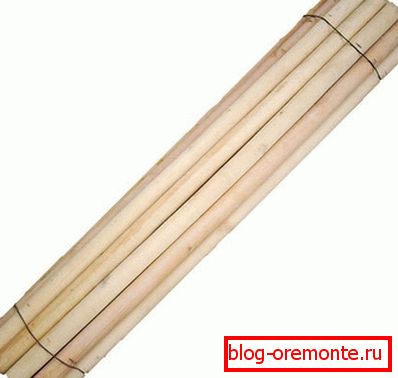

Note! According to the masters, birch is the best material for dowels.

Making of pins of wood

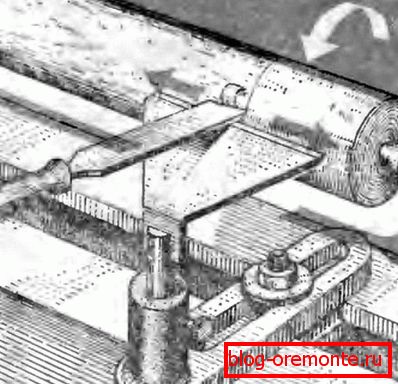

The cylindrical shape of this connecting element is a classic body of rotation. Accordingly, a lathe with a set of corresponding cutters is most suitable for its production. Lumber dried to a certain moisture content is used as blanks. Preference is given to the outer parts of the trunk, where the density of wood is higher, which means that it is able to withstand heavy loads.

Nagel can be made by hand with the necessary equipment in the home workshop.

The order of operations is as follows:

1. we select a blank of suitable size and shape, the wood should not have cracks, deep damage, knots and the like;
2. install it in the receiving device of the machine and carefully fasten it in strict accordance with the instructions for use;
3. we start the engine and with the help of a cutter we give the billet a cylindrical shape;

1. as chips are removed, we measure the diameter with a caliper;
2. upon reaching the required indicator, we cut the workpiece to a certain length and make a chamfer; (See also the article cut timber and its role in civil construction)
3. remove the finished product from the machine and repeat all the steps for the next workpiece.

It will take just a few minutes for a qualified joiner to make one nogle with all the necessary. An inexperienced master will spend more time, but practice shows that the necessary skill is gained fairly quickly. The price of their own products will be minimal.

Tip! Please note that when working on a lathe, you need to use glasses to protect your eyes from hitting the chips.

The use of dowels in the construction of walls of timber

The procedure for performing the assembly of houses is determined by technology.

Installation of dowels in the beam is as follows:

1. marks of fastening points are put on the lower part, their number and the distance between them is calculated according to the normative documentation;
2. the holes under the dowels should be located strictly along the centerline of the timber and be perpendicular to its outer surface;

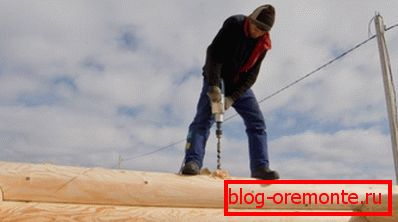

3. a drill with a drill is used for drilling, while working it should be held with two hands, and the body position should be stable;
4. optimal use of the tool with a special nozzle, which provides the required position in relation to the timber, this will significantly speed up the work;
5. the total depth of the holes should be somewhat larger than the length of the dowel, which will provide the necessary thermal gap. (See also the article Docking beam by length - options for connections)

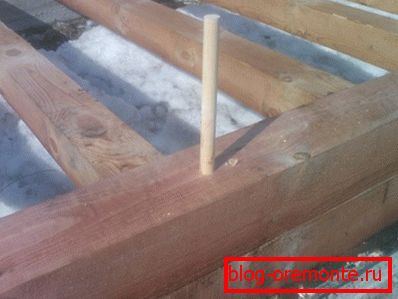

The assembly of the profiled bar on the nagel is carried out as follows:

1. Connecting elements are inserted into the holes drilled in advance, and fastened with a wooden hammer - a mallet;
2. together with the assistant, the next prepared detail is lifted by the edges and turned over with holes down;
3. having aligned the holes with the dowels, the bar is put on them and is upset against the stop.

Helpful advice! When performing such an operation as the assembly of the beam on the dowel, it is difficult to achieve alignment of the holes with fasteners. Simplifying the action will help attracting another assistant, who will direct the beam with great accuracy. To reduce friction when performing assembly, experienced craftsmen use a soap solution.

Reliable fastening of a bar with dowels, however, should have some degree of freedom. When wood dries, a change in shape and a decrease in volume are inevitable, as is thermal expansion when heated. The material is left with some degree of freedom to compensate for the change in linear dimensions.

Conclusion

Nagel for timber from hardwoods represent the most optimal variant of the connecting element for the construction of buildings. They provide the necessary strength of the building envelope and do not allow distortion of its individual elements.

The video in this article will help to get an accurate picture of the manufacturing process and the use of this type of fasteners.
