Cant machine: variations and functional features

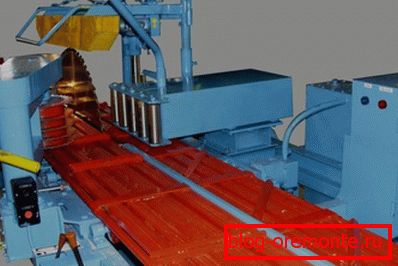

The canting machine is intended for the longitudinal cutting of logs (round timber) with the ultimate goal of obtaining a carriage - a double-sided bar and unedged board of specified parameters. This machine can be installed as a separate equipment or as a whole the woodworking production line.

In this article we will introduce you to the varieties of canting machines, briefly consider their technical characteristics and purpose.

Varieties of machines

This type of machine is different from other reinforced equipment of the bed, low power consumption, increased productivity, as well as - effective processing of timber.

Ganging machines are produced in accordance with the requirements of safety rules at work, they are easy to operate and reliable.

Constructive and technical characteristics are as follows:

• log feed speed is regulated very smoothly, there are up to four speeds;
• the speed of sawing hardwood and hard softwood - the highest;
• frame design - welded rigid, eliminates production vibrations;
• there are two saw units with economical individual electric motors;
• can be operated in operating mode at temperature spacing from -30 to +50 degrees Celsius;
• both warranty and post-warranty service is provided for all machines completed in production (detailed instructions are attached to the application).

Tip! If necessary, the customer can organize the work on the installation and commissioning of the SS in operation.

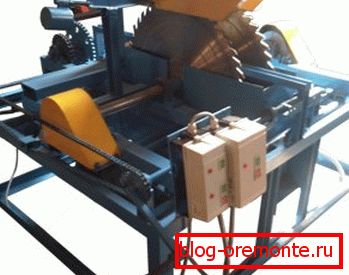

Machine paving production SLD-2P-800

This SB is equipped with two units of saws, which makes it possible to receive two slabs and a carriage from a log in one pass. It can be used as an independent apparatus, or in the form of a first-row sawmill in conjunction with a woodworking line.

On the SLD-2P-800, two saws are installed — 900 and 800 mm in diameter, which makes it possible to saw logs that reach 280 mm in diameter, resulting in beams with a thickness of up to 250 mm.

Material is fed smoothly, as there is a feed adjustment. The optimality of the set feed speed depends on the load on the saws (this aspect shows the ammeter).

When this is achieved such a mode of operation in which the saws and the electric motor do not get overload, working optimally efficiently. As a result, the service life of saws increases, while the cost of their additional maintenance is significantly reduced.

Some varieties of canting machines

Slapping cantilever SB 25, features:

• it is intended for processing of a log into not cut board and bar;
• used in the production of building joinery, in furniture and woodworking production;
• constructively, this model belongs to the "carriage type": rigid frame, rigid frame, precise and smooth positioning mechanism;
• the file occurs in both directions;
• The bar is made for the subsequent processing on multisaw and profile-cannon apparatus.

For information! The “carriage” type of device moves the carriages in strictness with the plane of cutting, while excluding any displacement of the logs across the plane of the saw. It is possible to transform the material with the branches, with the problem curvature.

Advantages of the machine:

• setting (operational) size;
• increased surface cleanliness (planed board);
• geometrical accuracy of cut;
• the possibility of processing hard wood (larch, oak);
• lack of foundation (the probability of leaving the cutting area) - a heavy-duty base frame that withstands shock loads, ensuring product quality;
• sawing frozen, wet, dirty, dry forests;
• use of stellitovy and hard-alloy saws;
• ease of maintenance with their own hands, as well as the availability of tools.

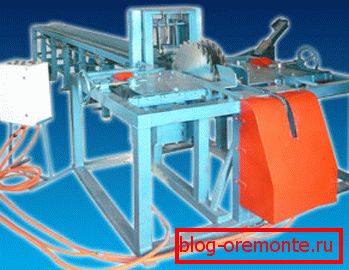

Another option, SB-70, is a vertical type double-disk machine for a tonometer, it is intended for longitudinal sawing of small-ton material, and also, as a trimming mechanism.

It is used mainly in woodworking plants during the process of manufacturing bar, bar, measuring boards and other sawn timber. (See also the article How to use unplaned timber)

Functionally, the SB-70 can be used as a separate independent unit of production and as an element of the production chain:

• for processing edges;
• sawing unedged and edged boards.

Milling-chipping machines

These devices are intended for the production of two-chetyrehskatnyh bars, as well as technological chips from slab.

Depending on the purpose of the chips:

• in the production of pulp;
• DSP.

The material feed rate, tool geometry, etc. are developed separately for each case. The quality characteristics of the bars are improved with the help of stripping or scoring saws. (See also the article What are the advantages of cedar glued laminated timber)

There is a possibility of production in several approaches:

• with the help of two circulations sawing is carried out in 3 approaches, and with the help of three circulations - in 5 approaches;
• the possibility of using asymmetric sawing patterns and quarter;
• the ability to adjust the shafts of the circular sawing machine automatically to the height of the log and log;
• according to the principle of circulation, various optimum sawing patterns are carried out.

Finally

On our portal there is also more extensive information, where you can learn in detail, for example, milling cant machine, its technical and quality characteristics and possibilities of acquisition. In the presented video - in this article - you will find additional information on this topic.
